Portable Silent Type Diesel Genset With Wheels 50kw Trailer Generator

1 SET
MOQ
Negotiation
ราคา
Portable Silent Type Diesel Genset With Wheels 50kw Trailer Generator
คุณสมบัติ คลังภาพ รายละเอียดสินค้า ขออ้าง
คุณสมบัติ
ข้อมูลจำเพาะ
Output Power: 50kw
Frequency: 50/60HZ
Voltage: 220v - 690v optional
Engine: Cummins, Perkins, Deutz, Iveco, Chinese brand for optional
Alternator: Stamford, Meccalte, Leroy Somer, Marathon, Wattek for optional
Controller: Deepsea, Smartgen, Harsen for optional
MCCB: ABB or Delixi
Cooling system: Water cooled
Genset type: Open type, Silent type, Container type, Trailer type for optional
ATS: Optional
แสงสูง:

cummins power generator

,

emergency diesel generator

ข้อมูลพื้นฐาน
Place of Origin: Jiangsu of China
ชื่อแบรนด์: GPRO
ได้รับการรับรอง: ISO,CE Certification
Model Number: PF-DC69T
การชำระเงิน
Packaging Details: Plywood or Plastic packing
Delivery Time: 15 - 20 working day
Payment Terms: L/C, T/T
Supply Ability: 300 Set / Month
รายละเอียดสินค้า

50kw trailer generator Portable Silent type Diesel Genset with wheels



Genset Power Capacity Prime Power 50kw/63kva

Standby Power 55kw / 69kw

Rated Voltage Volt 380/220V
Rated Current Amp 92
Rated Frequency Hz 50
Rated Speed RPM 1500
Power Factor / Phase Cos 0.8 Lagging, 3 phase
Cooling System Closed cycle water-cooled with fan, water tank
Overall Dimension
(open type)
(L×W×H)mm 1950*750*1300
Gross Weight kg 800
Overall Dimension (soundproof) (L×W×H)mm 2200*1000*1500
Gross Weight kg 1400
Diesel
Engine
Engine Brand powered by cummins engine
Engine Model No. 6BT5.9-G2
Rated Power kw 60
Engine Structure 6 cylinders vertical in-line,4 stroke,Turbocharged,
direct injection.
Speed Governor

Mechanical

Compression Ratio 15.1:1
Displacement litre 4.75
Lube Capacity litre 130
Fuel System PT type fuel injection pump
Fuel Consumption L/H 12.1
Lube Consumption g/kw.h 0.5%
Rotating Speed RPM 1500
Starting Mode By 24V batteries
Alternator Alternator Brand Stamford
Alternator Model UCI 224E
Features Brushless, self-excitation, AVR regulation,
IP21 protection grade
Insulation Class Class H
Steady Voltage Regulation ≤±1%
Instant Voltage Ragulation -15%~+20%
Voltage Regulation Scope >10%
Power Factor 0.8 Lagging
Connection Type 3 phase 4 wire, Y type
Controller Model No. Smartgen



Cummins / Stamford Genset Features:

1. Engine: Cummins industrial diesel engine

2. Heat Dissipation: Radiator 40°C max, fans are driven by belt, with safe guard

3. Protective Operation: Choice of manual/auto and AMF control panels and protection systems

4. Control Panel: Digital auto-start LED panel

5. Shakeproof: Anti Vibration Suspension Absorber

6. Safe Filter: Dry type air filter, fuel filter, oil filter

7. Breaker: Mould case circuit breaker

8. Power: 24V DC start motor and storage battery

9. Nozzle: Ripple flex exhaust pipe, exhaust siphon, flange, and muffler



Generator mounted on High quality trailers(with two wheels or four wheels

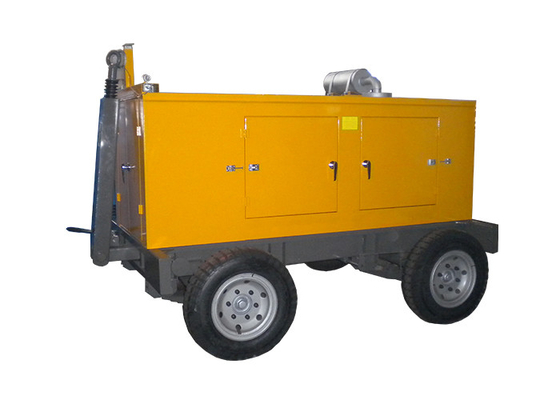

Portable Silent Type Diesel Genset With Wheels 50kw Trailer Generator 0



Portable Silent Type Diesel Genset With Wheels 50kw Trailer Generator 1





Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.



If you are interested, please contact with us at any time!
