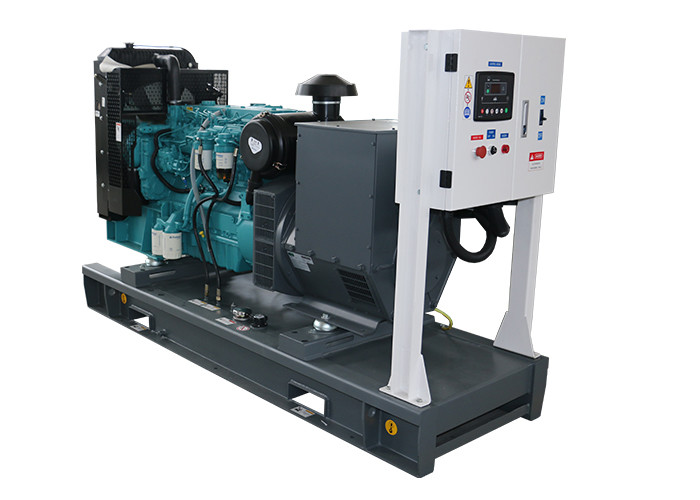

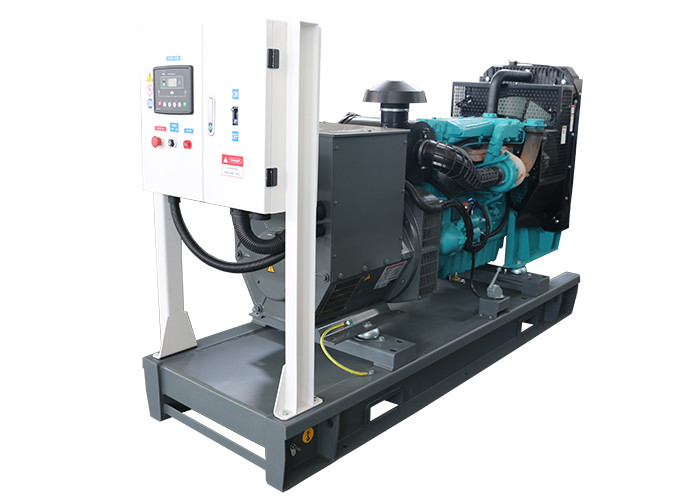

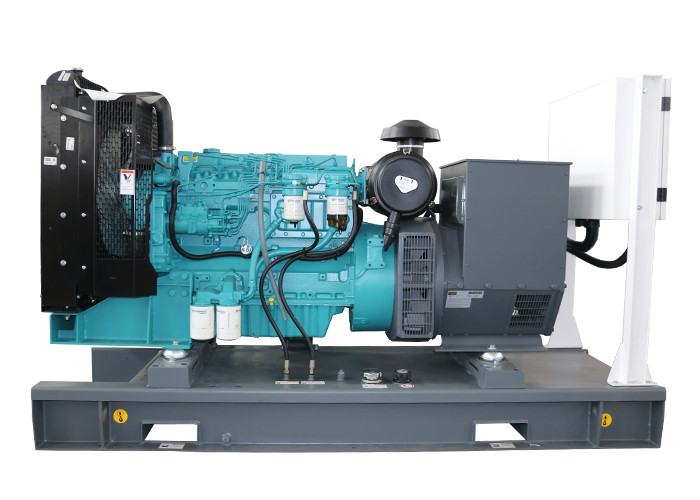

Perkins Diesel Generator Standby Power Electric Genset 100KVA 80KW
|
MODEL |
PF-P100 |
|
PRIME POWER (KVA/KW) |
100/80 |
|
STANDBY POWER(KVA/KW) |
110/88 |
|
Rated voltage(V) |
400/230 |
|
Rated speed(rpm) |
1500 |
|
Rated frequency(Hz) |
50 |
|
Power factor |
0.8 |
|
Ambient temperature(°C) |
40 |
|
Altitude(m) |
1000 |
|
Connection type |
3 phase 4 wires |
|
ENGINE MANUFACTURER |
PERKINS |
|
Model |
1104C-44TAG2 |
|
Rated Power(kW) |
99.5 |
|
No. of cylinders & configuration |
4 vertical in-Line |
|
Method of operation |
4-stroke |
|
Speed regulation |
Mechanically governor |
|
Starting system |
DC 12V Electronic start |
|
Cooling method |
Closed-circuit cooling system |
|
Total displacement(L) |
4.41 |
|
Compression ratio |
18.2:1 |
|
Bore×Stroke(mm) |
105×127 |
|
100% Load fuel consumption(L/h) |
≤22.6 |
|
ALTERNATOR MANUFACTURER |
STAMFORD |
|
Number of Phase |
3 |
|
Connection Type |
3Phase and 4Wires |
|
Number of Bearing |
1 |
|
Power Factor |
0.8 |
|
Protection Grade |
IP23 |
|
Terminal |
12 |
|
Winding/ Pitch |
100% Copper 2/3 Pitch |
|
Cooling Fan |
Cast alloy aluminum |
|
Exciter Type |
Brushless, Self-Exciting |
|
Insulation Class, Temperature Rise |
H/H |
|
Telephone Influence Factor( TIF) |
TIF <50 / THF<2% |
|
Total Harmonic TGH/THC |
<1.5% at no load / <5% at load |
|
Voltage Regulation, Steady State |
≤±1% |
|
Sustained Short-Circuit Current |
300%(3 in):10s |
|
CONTROL SYSTEM |
DSE SERIES |
Heavy duty world class brand industrial diesel engine:
a) Compact size
b) Economic and easy start in cold weather
2) World class brand-Stamford alternator:
a) Optional permanent magnet generator (PMG) system provides
constant excitation under all conditions
b) Easy paralleling with mains or other generators, standard 2/3 pitch
winding avoids excessive neutral currents
c) Dynamically balanced rotors with sealed-for life ball bearings and
single construction
d) Class "H" insulation system
e) Wide range of flange adapters and disc couplings
f) Conforms to all leading industrial and marine standards
ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.
Our normal ATS is bulit inside,but outside ATS box is optional
Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
If have any questions, please contact us. Your inquiry would be appreciated.
